How to Oracle Forms Windows Center in 6i,10G, 11G, 12C



Step 1:

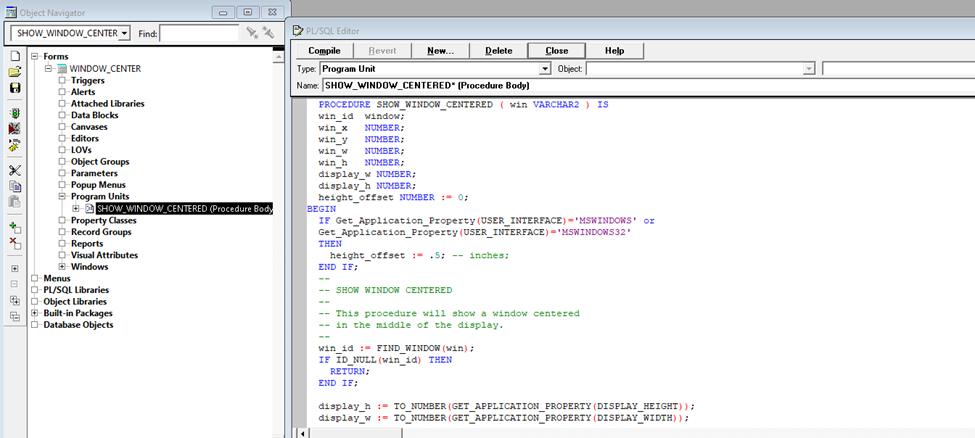

To begin, go to "Program unit" and create a procedure called "SHOW WINDOW CENTERED."

Step 2:

The second step is to copy and paste all of the code. It is mentioned in the next section.

  PROCEDURE SHOW_WINDOW_CENTERED ( win VARCHAR2 ) IS

  win_id  window;

  win_x   NUMBER;

  win_y   NUMBER;

  win_w   NUMBER;

  win_h   NUMBER;

  display_w NUMBER;

  display_h NUMBER;

  height_offset NUMBER := 0;

BEGIN

  IF Get_Application_Property(USER_INTERFACE)='MSWINDOWS' or

               Get_Application_Property(USER_INTERFACE)='MSWINDOWS32'

  THEN

    height_offset := .5; -- inches;

  END IF;

  --

  -- SHOW WINDOW CENTERED

  --

  -- This procedure will show a window centered

  -- in the middle of the display.

  --

  win_id := FIND_WINDOW(win);

  IF ID_NULL(win_id) THEN

    RETURN;

  END IF;



  display_h := TO_NUMBER(GET_APPLICATION_PROPERTY(DISPLAY_HEIGHT));

  display_w := TO_NUMBER(GET_APPLICATION_PROPERTY(DISPLAY_WIDTH));





  win_x := GET_WINDOW_PROPERTY(win_id, X_POS);

  win_y := GET_WINDOW_PROPERTY(win_id, Y_POS);

  win_w := GET_WINDOW_PROPERTY(win_id, WIDTH);

  win_h := GET_WINDOW_PROPERTY(win_id, HEIGHT);





  IF ( win_w >= display_w ) THEN

    win_x := 0;

  ELSE

    win_x := (display_w - win_w) / 2;

  END IF;



  IF ( win_h >= display_h ) THEN

    win_y := 0;

  ELSE

    win_y := (display_h - height_offset - win_h) / 2;

  END IF;



  -- Set window's new position

  SET_WINDOW_PROPERTY(win_id, X_POS, win_x);

  SET_WINDOW_PROPERTY(win_id, Y_POS, win_y-50);



  SHOW_WINDOW(win_id);

END;

Step 3:

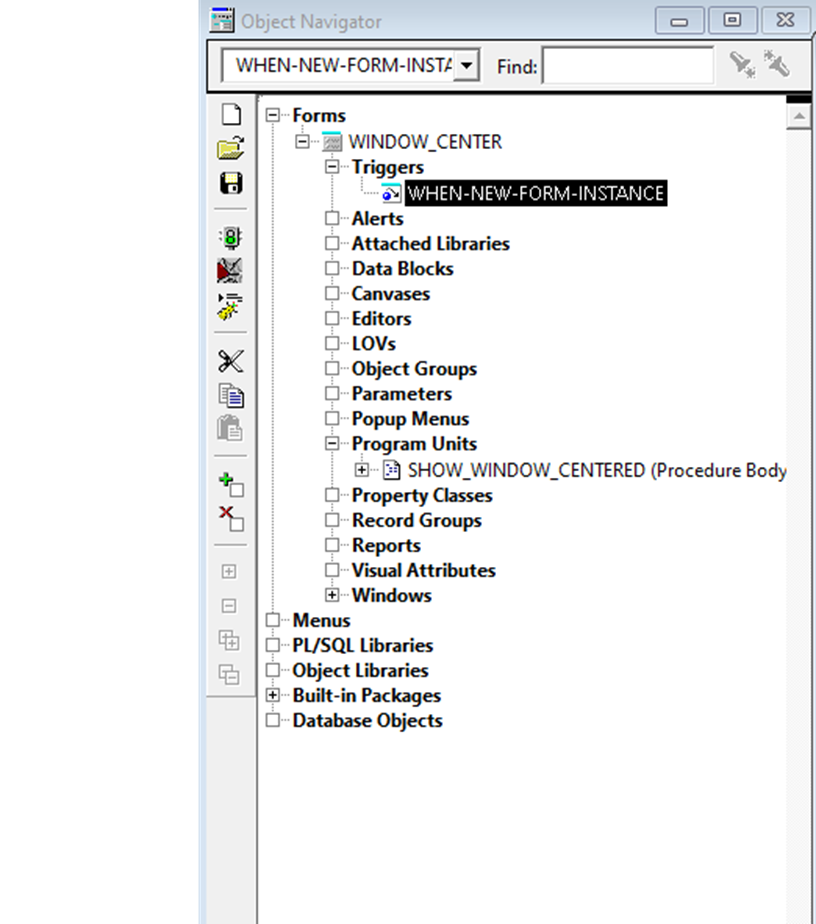

Create the "WHEN-NEW-FORM-INSTANCE" trigger at the Form level.

Step 4:

The four step is to copy and paste all of the code. It is mentioned in the next section.

·         Change the window title is the first line in this code.

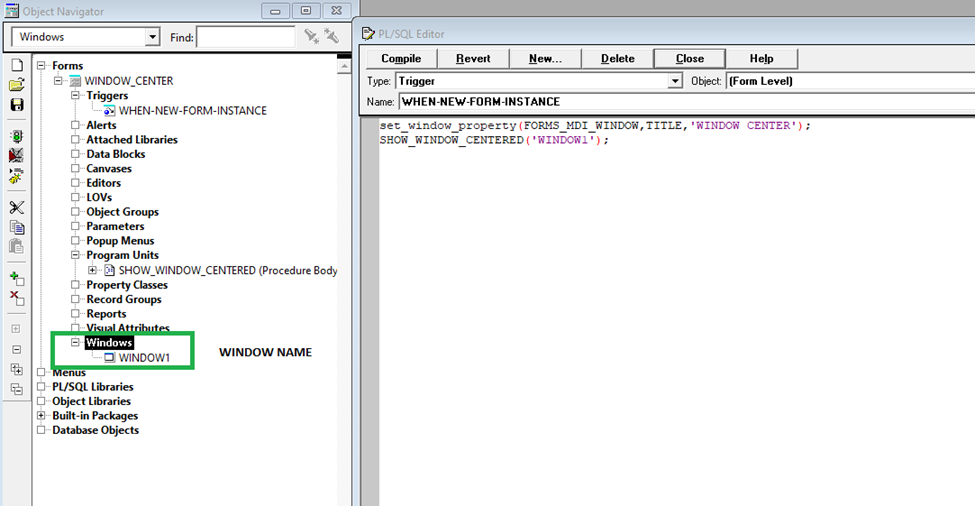

·         Second line of this code call that procedure I created and pass the window name in my case the window name is “WINDOW1”



set_window_property(FORMS_MDI_WINDOW,TITLE,'WINDOW CENTER');

SHOW_WINDOW_CENTERED('WINDOW1');

 OUTPUT:

I hope it's helpful for you. If you have any queries, don't hesitate to contact me.
